Plain Woven Monofilament Polyester Screen Fabric For Sieving Particles in Liquid Filtration
Contact Person : Eric Xiang
Phone Number : +86-18658318635
WhatsApp : +8613968584834
| Minimum Order Quantity : | 1000 PCS | Price : | $1 for 1000 PCS, $0.9 for 5,000 PCS, $0.8 for 20, 000 PCS |
|---|---|---|---|
| Packaging Details : | 100PCS/Pkg | Delivery Time : | 5 working days |
| Payment Terms : | L/C, T/T, Paypal | Supply Ability : | 10, 0000 pcs / day |
| Place of Origin: | Zhejiang, China | Brand Name: | SHARE FILTERS |
|---|---|---|---|
| Certification: | Reach Svhc, SGS RoHS, US California Proposition 65 | Model Number: | SG-PM-47 |
|
Detail Information |
|||
| Material: | Polyester Monofilament Mesh | Micron Ratings: | 149, 183, 209, 294um |
|---|---|---|---|
| Thread: | Polyester Monofilament | Weave Type: | Plain Weave |
| Mesh Color: | White | Mesh Width: | 100, 127, 145, 165, 220, 260, 310, 360cm |
| Roll Length: | 30-70m | Package: | 100PCS/Pkg |
| Used In: | Tumble Dryer Filters | HS Code: | 5911200090 |
| High Light: | 294 um Fine Filter Mesh,Polyester Fine Filter Mesh,Tumble Dryer Polyester Filter Mesh |
||
Product Description

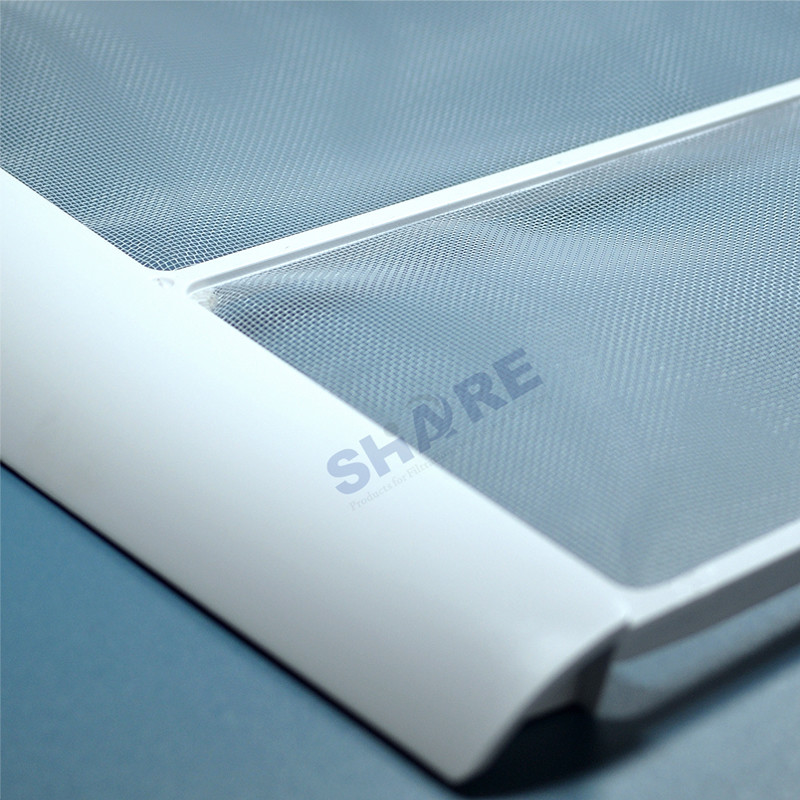

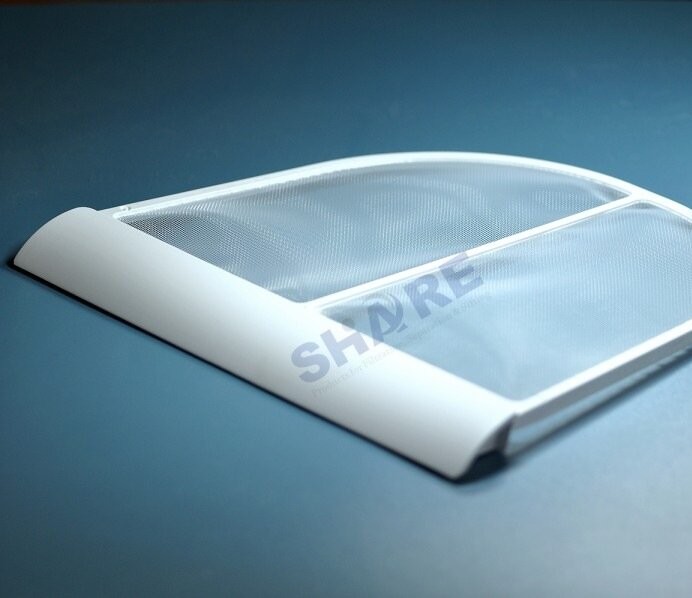

SHARE precision polyester filter mesh improve the performance of your tumble dryer by holding back all solid pieces above a desired size.
SHARE polyester fabrics resist the hot air flow and mechanical stress while remaining durable and easy to clean.
The polyester filter meshes we recommend for Tumble Dryer Filters are:
SHARE DPP43T/110-80W PW (PET, 149µm mesh opening)
SHARE DPP36T/92-90W PW (PET, 183 µm mesh opening)
SHARE DPP32T/83-100W PW (PET, 209 µm mesh opening)
SHARE DPP24T/60-120W PW (PET, 294 µm mesh opening)
Specifications
| Product Name | Tumble Dryer Polyester Fine Filter Mesh |
| Manufacturer | Taizhou Share Filters Co. Ltd. |
| Brand | SHARE FILTERS |
| Material and item | Food grade polyester monofilament filter mesh:
|
| Color | White |
| Weave type | Plain woven, twill woven, dutch woven |
| Common width | 100cm, 127cm, 150cm, 160cm, 175cm, 183cm, 365cm or customized |
| Roll length | 30-100 mester or customized |
| Mesh count/cm | DPP8T-DPP200T |
| Mesh count/inch | 20 mesh/inch-508 mesh/inch |
| Thread diameter | 27um-600um |
| Mesh opening | 5um - 4400um |
| Open area | 10% to 92% |
| Thickness | 41um -1170um |
| Certificate | ISO19001 SGS ROHS |
| Samples | 2 meters free |
| Advantages |
|
| Applications | Tumble dryer filters |
Technical Datasheet
| Precision Polyester Filter Mesh Specifications | |||||||
| Mesh count (per cm/inch) |
Weave (tw or pw) |
Thread diameter (microns) | Mesh opening (microns) | Overall fabric thickness (microns) |
Open area (%) |
Theoretical ink deposit (cm3/m2) |
Mesh Weight (gsm) |
| 24/60-120W | PW | 120 | 294 | 210 | 49.7 | 104.3 | 81 |
| 32/83-100W | PW | 100 | 209 | 166 | 44.5 | 72.1 | 75 |
| 36/92-90W | PW | 90 | 183 | 147 | 43.3 | 64.9 | 68 |
| 43/110-80W | PW | 80 | 149 | 130 | 40.8 | 53.0 | 64 |

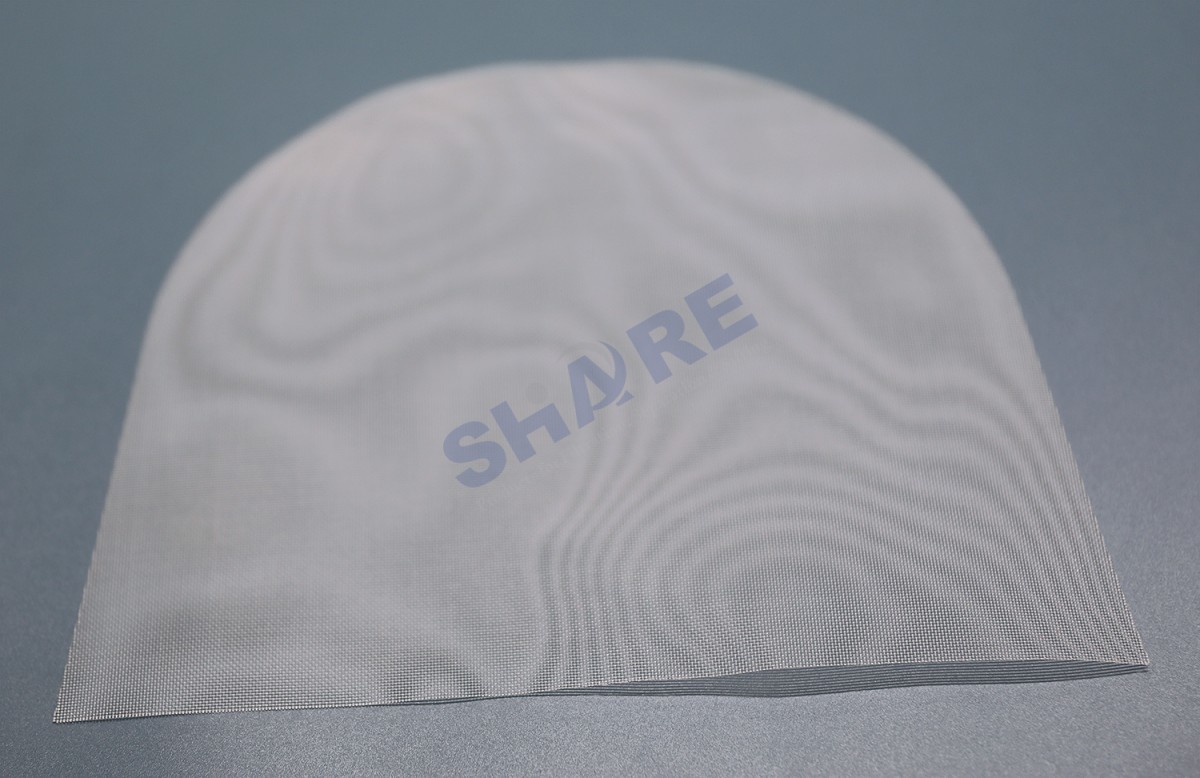

Product Gallery
Yarn, Weave and Mesh
Polyester Monofilament
Plain Weave
Plain weave is made by crossing the warp and weft yarns with each other. Well-regulated and highly durable textile fabrics can be created as there are many points where the threads cross each other (structure points). It is also resistant to friction.
Since the warp and weft yarns appear on the front and rear surfaces of the textile uniformly, it is sometimes difficult to make a distinction between the front side and the rear side compared to other structures.

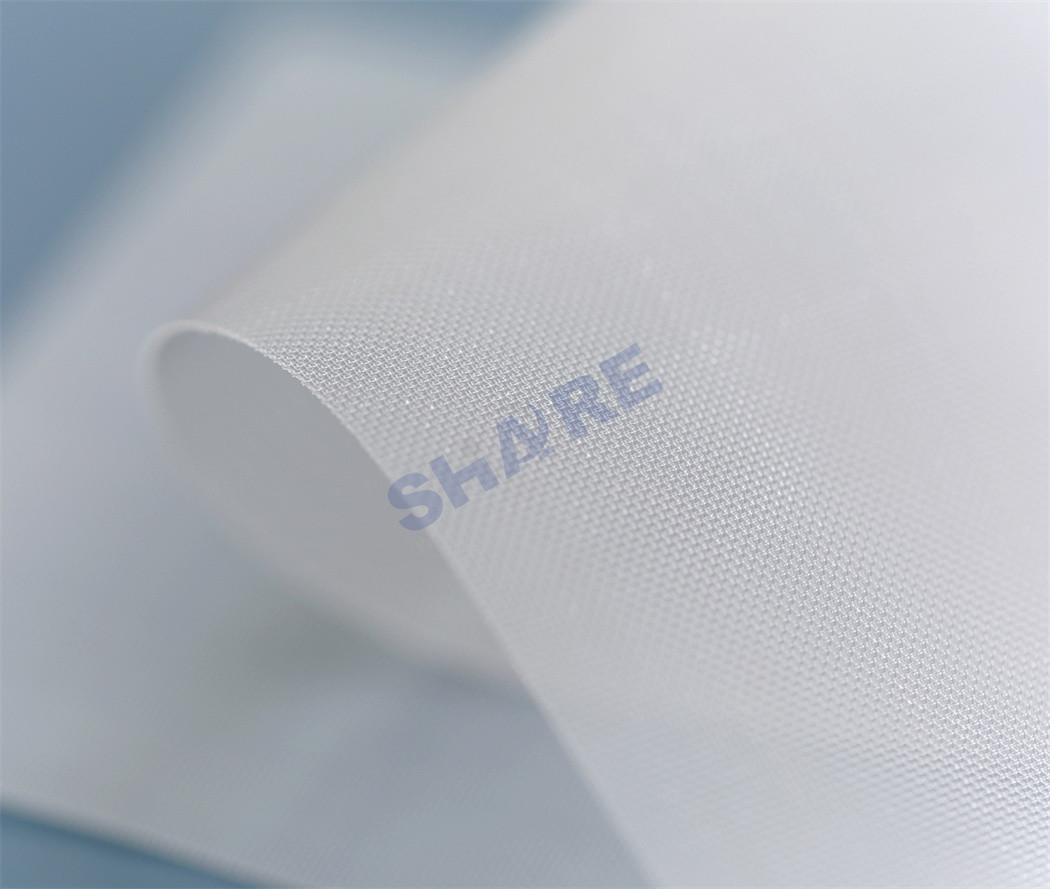

Mesh
SHARE precision polyester filter mesh has smooth surface, great dimensional stability and strength than other material options, and tighter tolerance. It has different but precise open area ranging from 10% to 92%, mesh opening from 5um to 4400um, and thicknesses from 40um to 1170um. These allow for the different sized polyester filter meshes to be used in different situations and for different purposes, such as home appliance, liquid filtration, dust collection or separation, dry and wet filter bags, sifting, milling, automotive, medical, food, pharmaceutical, molded filters and many more.
SHARE can further processed polyester filter mesh into various forms of custom filters, such as filter pieces, shapes, ribbons, tubes, plastic filters by our state-of-the-art technologies of cutting, stitching, gluing, welding, laser cutting, molding and more, to fuifil customers and markets' demanding filtration and screening needs.
Contact SHARE today for additional information and how we can help you with your specific filtration requirements.
SHARE Shapping Capabilities
1. Laser Cutting
Laser cutting produces highly precise fabric parts with a heat-sealed edge. Share uses different laser cutting systems to meet customers various requirements including semi-automated vision systems and fully automated with AI programming.
Packaging & Shipping
For mesh rolls:
1. Rolled on the paper core, 30-70m/roll, packed into PE bags, the product label is attached on the edge of each roll
2. 2-8 rolls per standard export carton
3. Put into PP woven bag to prevent damage during transportation
4. Package belt strengthen
For fabricated & molded filters:
1. Packed into sealed PE bags, 10pcs to 500pcs/bag according to the actual size, double bagged and the product label is attached in the inner bag
2. Put into bigger PE bag and then standard export carton
3. Wrapped the outer carton with PE stretch film to prevent damage during transportation
4. Package belt strengthen if pallets are available
The label contains the following standard information:
item name, manufacturer, material, dimensions, manufacturing date, order number, batch number etc.
| Port to Port | Door to Door | |
| Express(DHL,UPS,FEDEX, EMS) | 1 - 5 days | |
| Air Freight | 1 - 5 days | 4 - 10 days |
| Sea Freight(FCL) | 15 - 30 days | 20 - 35 days |
| Sea Freight(LCL) | 15 - 30 days | 22 - 37 days |
FAQ
1. Where is your factory located? How can I visit there?
We are in Taizhou city, Zhejiang province China. By train, we are one hour away from Hangzhou and two hours away from Shanghai.
2. Can I get free samples and how long can you deliver them?
We are pleased to provide you with free samples for your evaluation, which will be sent to you within 2 days. Please feel free to reach out to us for samples.
3. How long does a quotation take?
In most cases, we respond within 2 days. If something in RFQ need be confirmed, we will promptly notify you soon.
4. How quickly can I get my order finished?
The production lead time is dependent on the quantity. Typically, it takes 5 to 15 working days for us to complete mass production once you have placed the order.
5. What about your quality control?
By visual inspection, optical or pressure sensitive equipment and automated 3D image-inspection equipment, our production operators conduct self-inspections at every stage of the process. Additionally, we have spot inspections and final inspections carried out by our Quality Control (QC) team.
6. What's your largest advantage?
One of our core competencies is our excellent converting capabilities from yarn over weaving to converted items with professional technical team and quality guarantee and management for more than 30 years.
7. What kind of payment terms do you accept?
T/T and LC and more.
