Polyester Mesh Rolls or Pre-Cut Cutting Into Shapes or Shaping Into Molded Filters on Request for Industrial Sieving
Polyester Mesh Rolls or Pre-Cut Cutting Into Shapes or Shaping Into Molded Filters on Request for Industrial Sieving Polyester Mesh Rolls or Pre-Cut Cutting Into Shapes or Shaping Into Molded Filters on Request for Industrial Sieving Polyester Mesh Rolls or Pre-Cut Cutting Into Shapes or Shaping Into Molded Filters on Request for Industrial Sieving
Contact Now

Polyester Mesh Rolls or Pre-Cut Cutting Into Shapes or Shaping Into Molded Filters on Request for Industrial Sieving

Minimum Order Quantity : 1000 PCS Price : $1 for 500 pcs, $0.9 for 10,000 pcs, $0.7 for 50, 000 pcs
Packaging Details : PE bag and carton Delivery Time : 1-2 working days
Payment Terms : L/C, T/T, Paypal Supply Ability : 5, 0000 pcs / day
Place of Origin: Zhejiang, China Brand Name: SHARE FILTERS
Certification: Reach Svhc, SGS RoHS, California Proposition 65 Model Number: SG-PF-18

Detail Information
Features: Dimensional Stability, Chemical Resistance, Wide Selections Of Micron Ratings Material: 100% Polyester Monofilament Thread
Color: Natural White Micron Opening: 5 Um To 4400 Um
Forms: Rolls, Pieces, Discs, Ribbons, Tubes, Molded Filters Applications: Home Electric Appliance, Automotive, Laboratory, Chemicals, Medicals, Food And Beverage, Industry Etc.
Process Methods: Cutting, Stamping, Sewing, Welding, Molding Production Capacity: 100, 000 Pieces/Day
Transport Package: PE Bags And Cartons
High Light:

Polyester Mesh Filters Rolls

,

Industrial Sieving Polyester Mesh Rolls

Product Description

Polyester, a synthetic polymer, is known for its superior mechanical & chemical resistance, and overall versatility compared to nylon. SHARE polyester precision mesh is commonly used in various applications for screening, sifting, separating, filtering, straining, protecting and classifying purposes.​



Item Name 5 Micron to 4400 Micron High Temperature Resistant Polyester Mesh Filters
Manufacturer Taizhou Share Filters Co. Ltd.
Brand SHARE FILTERS
Material 100% polyester monofilament yarn
Color Natural white
Weave Type Plain woven
Mesh Opening 5um to 4400um
Open Area 10% to 92%
Mesh Thickness 40um to 1170um
Common Width 1cm to 390cm are available. Commonly roll width 50cm, 100cm, 127cm, 150cm, 160cm, 175cm, 183cm, 365cm.
Roll Length 30-100 mester or customized
Processing Technologies Weaving, cutting, stamping, molding
Features
  • Good resistance to chemical except strong alkalis.
  • Very stiff, strong and hard but does not have good abrasion resistance.
  • Working temperature is typically around 302ºF (150ºC).
  • Water absorption is very low.
  • Available in various forms, including roll, disc, ribbon, shapes, tube, bag, pleated filter, molded filter components in round, square, rectangular, trapezoidal, circular shape, etc.
  • Compliance with food grade standards.
  • RoHS and SVHC certified.
Your Benifits
  • Precision mesh opening, open area and thickness
  • Almost unlimited range of shapes (various technologies)
  • Suited for healthcare applications (FDA compliant, sterile treatment)
  • Traceability (label)
  • Non-fraying edges (depending on selected technology)
  • Smooth and clean surface
Quality Control Visual inspection, optical or pressure sensitive equipment and automated 3D image-inspection equipment
Certificate ISO19001 SGS ROHS REACH
Sample 2 meters of free samples
Applications A wide range of industrial applications, such as home appliance, liquid filtration, dust collection or separation, dry and wet filter bags, sifting, milling, automotive, medical, food, pharmaceutical, molded filters

Polyester Mesh Rolls or Pre-Cut Cutting Into Shapes or Shaping Into Molded Filters on Request for Industrial Sieving 0

TECHNICAL DATA SHEET

SHARE Precision Polyester Filter Mesh Technical Data Sheet
Fabric
number		 Mesh count Thread
diameter		 Mesh
opening		 Open
area		 Fabric
thickness		 Weight
NO. mesh/cm mesh/inch micron micron % micron g/m2
PES 4400/77.5 2T 5 600 4400 77.5 1170 156
PES 2750/67.2 3T 8 600 2750 67.2 1160 234
PES 2000/64 4T 10 500 2000 64 950 217
PES 1550/60 5T 13 450 1550 60 850 259
PES 1270/58 6T 15 400 1270 58 760 246
PES 1080/57 7T 18 350 1080 57 660 220
PES 900/52 8T 20 350 900 52 660 251
PES 760/47 9T 23 350 760 47 670 282
PES 800/64 10S 25 200 800 64 360 87
PES 750/56 10 25 250 750 56 450 160
PES 700/49 10T 25 300 700 49 570 231
PES 720/74 12S 30 120 720 74 215 44
PES 680/67 12 30 150 680 67 260 69
PES 580/48 12 30 250 580 48 460 192
PES 530/40 12T 30 300 530 40 580 277
PES 515/52 14S 36 200 515 52 360 143
PES 470/50 15S 38 200 470 50 380 154
PES 420/40 15T 38 250 420 40 470 240
PES 525/92 16S 41 100 525 92 180 36
PES 425/46 16T 41 200 425 46 380 164
PES 405/53 18S 46 150 405 53 260 104
PES 375/46 18T 46 180 375 46 330 150
PES 375/51 19T 48 150 375 51 260 110
PES 420/71 20S 50 80 420 71 140 33
PES 400/64 20S 50 110 400 64 180 51
PES 350/49 20T 50 150 350 49 260 115
PES 325/47 21T 53 150 325 47 270 121
PES 340/67 24S 61 120 340 67 220 88
PES 270/42 24T 61 150 270 42 280 138
PES 250/46 27T 68 120 250 46 230 100
PES 280/62 28S 71 80 280 62 150 46
PES 240/45 28T 71 120 240 45 230 103
PES 225/43 29T 74 120 225 43 230 107
PES 215/42 30T 76 120 215 42 230 111
PES 230/54 32S 80 80 230 54 150 52
PES 210/45 32T 80 100 210 45 180 82
PES 215/53 34S 86 80 215 53 150 56
PES 195/44 34T 86 100 195 44 180 87
PES 180/42 36T 91 100 180 42 180 92
PES 200/61 39S 99 55 200 61 95 30
PES 190/55 39T 99 64 190 55 115 40
PES 150/36 40T 102 100 150 36 190 103
PES 150/42 43T 110 80 150 42 155 71
PES 160/57 47S 120 55 160 57 96 36
PES 150/50 47T 120 64 150 50 120 48
PES 140/43 47HD 120 71 140 43 130 59
PES 140/47 49S 125 64 140 47 120 50
PES 135/44 49T 125 71 135 44 130 62
PES 144/55 53S 135 45 144 55 76 27
PES 135/51 53S 135 55 135 51 97 40
PES 125/44 53T 135 64 125 44 122 54
PES 117/39 53T 135 71 117 39 132 67
PES 115/46 59S 150 55 115 46 99 45
PES 105/38 59T 150 64 105 38 123 61
PES 100/41 64S 160 55 100 41 100 48
PES 90/33 64T 160 64 90 33 125 66
PES 95/47 72S 180 45 95 47 78 37
PES 85/38 72T 180 55 85 38 102 55
PES 75/33 77T 195 55 75 33 105 58
PES 80/41 80S 200 45 80 41 80 41
PES 85/44 80T 200 48 85 44 86 44
PES 70/40 90M 230 39 70 40 68 34
PES 68/34 90T 230 45 68 34 80 46
PES 65/33 90T 230 48 65 33 82 49
PES 60/36 100T 250 39 60 36 69 38
PES 56/38 110T 280 34 56 38 62 34
PES 52/33 110HD 280 39 52 33 70 42
PES 52/40 120S 300 31 52 40 48 32
PES 48/33 120T 300 34 48 33 63 37
PES 44/28 120HD 300 39 44 28 72 46
PES 47/37 130S 330 31 47 37 50 35
PES 42/30 130T 330 34 42 30 58 40
PES 43/34 140S 350 31 43 34 50 37
PES 36/25 140T 355 34 36 25 62 43
PES 37/30 150S 380 31 37 30 50 40
PES 32/24 150 381 34 32 24 56 43
PES 33/31 165S 420 27 33 31 40 26
PES 32/23 165T 420 31 32 23 50 36
PES 25/16 165 419 34 25 16 66 49
PES 24/18 180 457 27 24 18 43 33
PES 23/17 180 457 31 23 17 56 40
PES 18/18 235x245 597x622 24 18 18 44 32
PES 18/13 200 508 31 18 13 60 48
PES 23/25 200T 500 27 23 25 45 32
PES 15/10 200x215 508x546 31 15 10 59 50

The data are compiled to the best of our knowledge. Subject to change without notice. Current data are available on you demand.

​

​

While nylon mesh is widely used for various applications due to its cost effectiveness and flexibility, it has limitations in certain environments, particularly acidic ones. Nylon is susceptible to degradation in acidic conditions. Therefore, if your application involves exposure to acidic substances, it's important to consider alternative materials that are more resistant to acids, such as our polyester mesh.

SHARE recommends polyester mesh for acidic applications primarily because it can withstand a wide range of acids, solvents and oxidizers, and can be used with oils, brake fluid, hydrocarbon fuels, and lubricants. In addition, polyester mesh is resistant to temperature(up to 150ºC), water, and most types of solvents.

SHARE polyester mesh filters have smooth surface, great dimensional stability and strength than other material options, and tighter tolerance. SHARE polyester mesh has different but precise opening percentages ranging from 10% to 92%, various pore sizes from 5um to 4400um, and thicknesses from 40um to 1170um. These allow for the different sized polyester filter meshes to be used in different situations and for different purposes, such as home appliance filters, liquid filtration, dust collection or separation, dry and wet filter bags, sifting, milling, automotive, medical, food, pharmaceutical, molded filters and many more.



Polyester Mesh Rolls or Pre-Cut Cutting Into Shapes or Shaping Into Molded Filters on Request for Industrial Sieving 1Polyester Mesh Rolls or Pre-Cut Cutting Into Shapes or Shaping Into Molded Filters on Request for Industrial Sieving 2



Whether you want to improve the quality or reduce the cost of your existing filter component, plan a new filtration application, or need assistance with specifications and design validation, SHARE application specialists with decades of experience will help you create the best filter solution for your application.

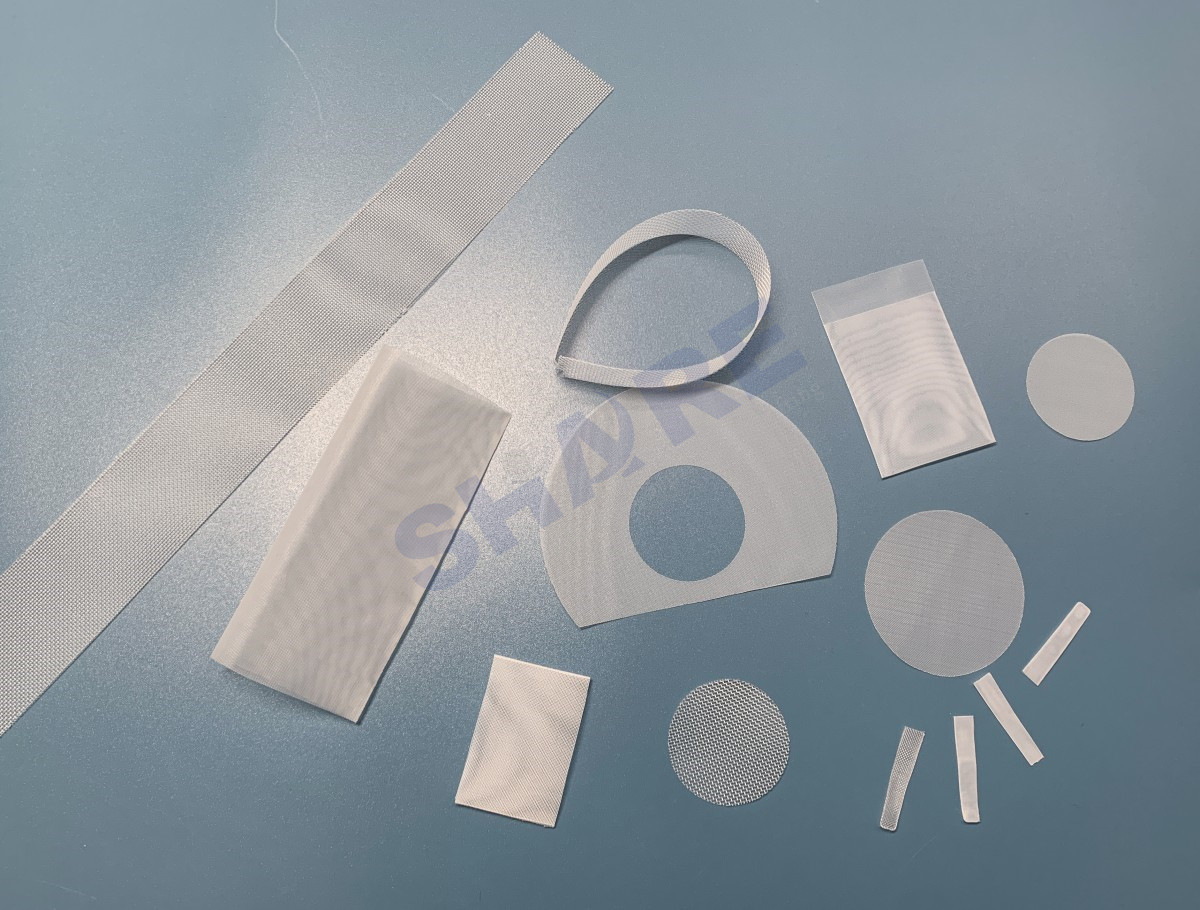

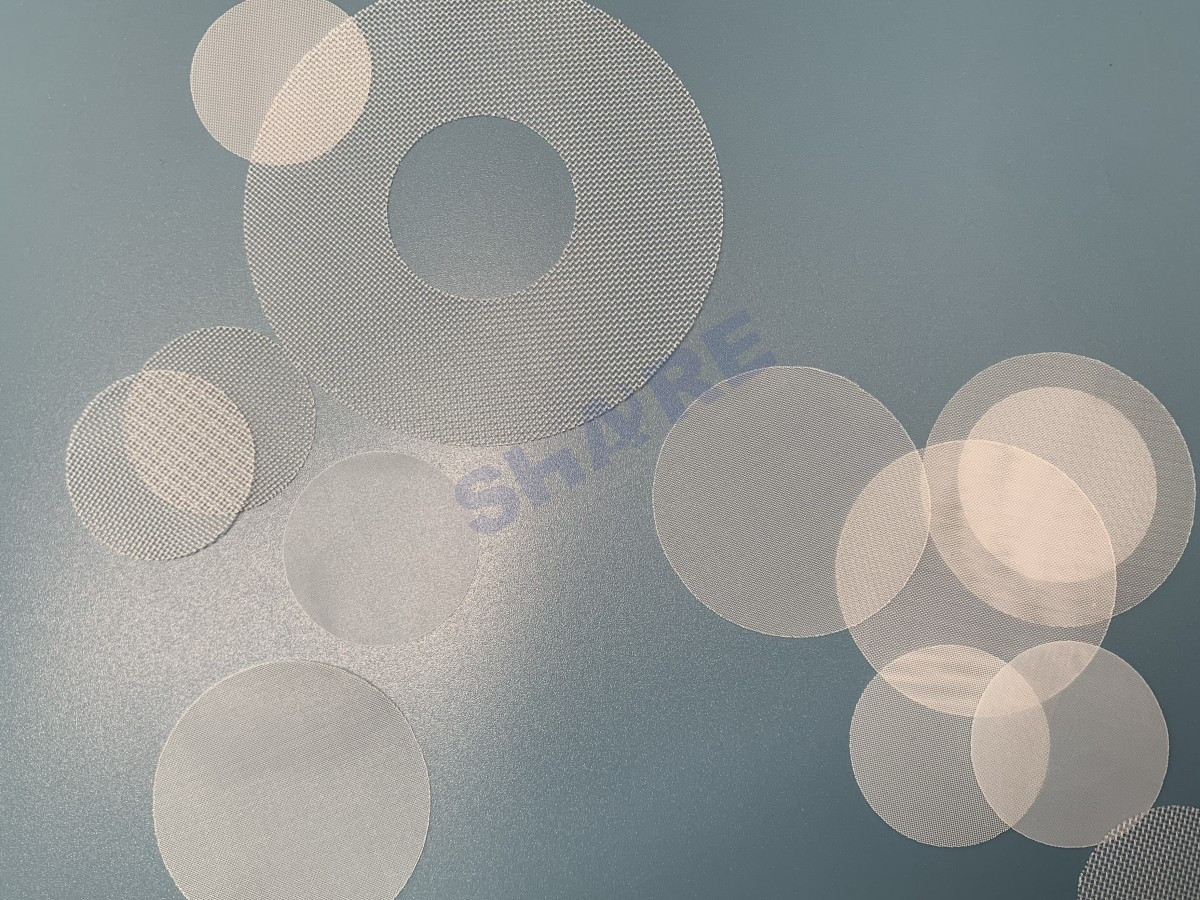

SHARE filter mesh can be supplied in the forms of rolls or pre-cut on request including discs, ribbons, tubes, bags and molded filters.

  • Mesh Openings: 5um to 4400um
  • Materials: PA, PET, PP, PE, etc.
  • Shapping: Cutting, sewing, ultrasonic welding, molding and more
  • Certifications: REACH SVHC, ROHS, California Proposition 65, Silicon Test, MSDS
  • Shapping: cutting, sewing, ultrasonic welding, molding and more. Here are some typical examples of how SHARE converts our fabrics.

    - Cutting into all possible shapes.

    - Cutting fabrics into ribbons.

    - Stitching and welding into bags.

    - Welding or bonding pre-cut mesh on rigid frame.

    - Pleating: single or multilayer.

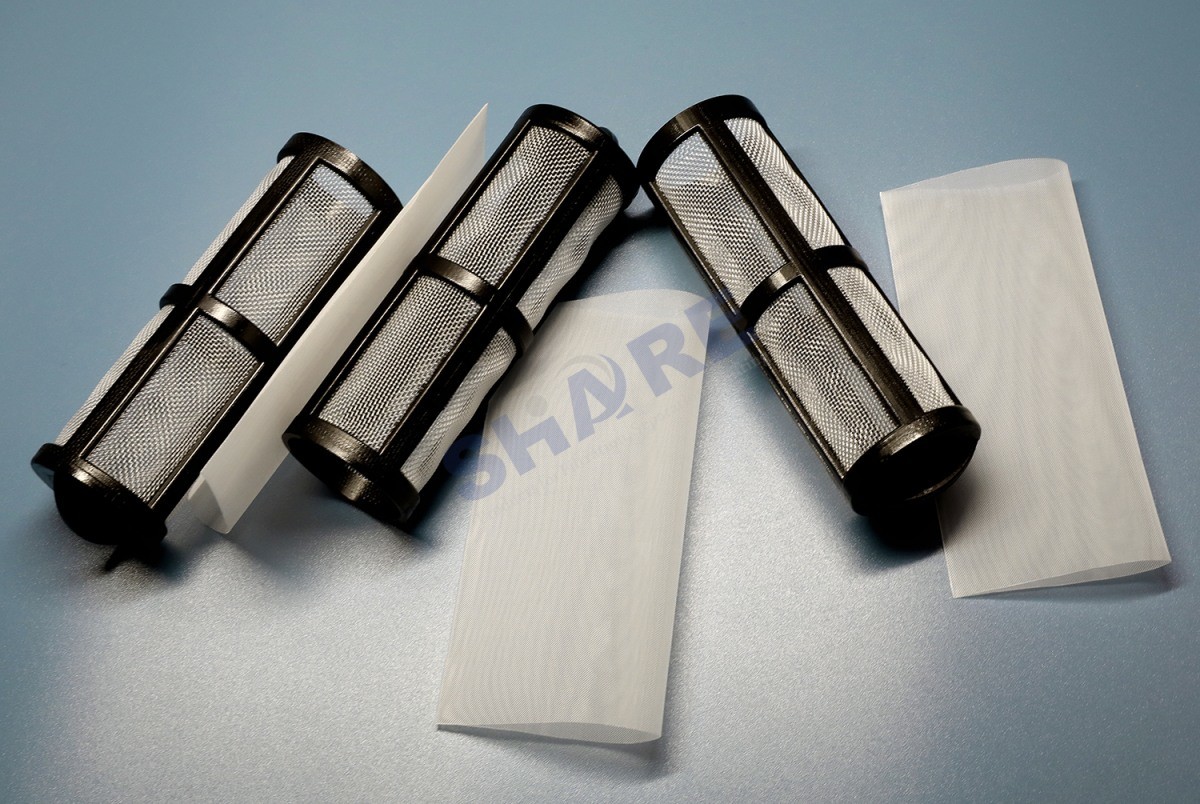

    - Shaping tubular filters.Polyester Mesh Rolls or Pre-Cut Cutting Into Shapes or Shaping Into Molded Filters on Request for Industrial Sieving 3Polyester Mesh Rolls or Pre-Cut Cutting Into Shapes or Shaping Into Molded Filters on Request for Industrial Sieving 4Polyester Mesh Rolls or Pre-Cut Cutting Into Shapes or Shaping Into Molded Filters on Request for Industrial Sieving 5Polyester Mesh Rolls or Pre-Cut Cutting Into Shapes or Shaping Into Molded Filters on Request for Industrial Sieving 6



In the home appliance, automotive, irrigation, medical, and food and beverage industries, there is a demand for plastic molded filters. Mesh filters are molded using injection machines. Purely mesh structures are soft and a rigid and robust frame is necessary to support the filter meshes for filtration applications. Injection molding is introduced to meet this need. Plastic injection molding technique allows the filter mesh to be covered with various plastic resins, including ABS, POM, PP, PA6 series, PC, PE, and other plastic resins, as well as silicone and rubber materials.Polyester Mesh Rolls or Pre-Cut Cutting Into Shapes or Shaping Into Molded Filters on Request for Industrial Sieving 7

Polyester Mesh Rolls or Pre-Cut Cutting Into Shapes or Shaping Into Molded Filters on Request for Industrial Sieving 8

WORKSHOP

Polyester Mesh Rolls or Pre-Cut Cutting Into Shapes or Shaping Into Molded Filters on Request for Industrial Sieving 9

Polyester Mesh Rolls or Pre-Cut Cutting Into Shapes or Shaping Into Molded Filters on Request for Industrial Sieving 10



PACKAGING & SHIPPING



For mesh rolls:
1. Rolled on the paper core, 30-70m/roll, packed into PE bags, the product label is attached on the edge of each roll
2. 2-8 rolls per standard export carton
3. Put into PP woven bag to prevent damage during transportation
4. Package belt strengthen

For fabricated filters:
1. Packed into sealed PE bags, 10pcs to 500pcs/bag according to the actual size, double bagged and the product label is attached in the inner bag
2. Put into bigger PE bag and then standard export carton
3. Wrapped the outer carton with PE stretch film to prevent damage during transportation
4. Package belt strengthen if pallets are available

The label contains the following standard information:
item name, manufacturer, material, dimensions, manufacturing date, order number, batch number etc.

  Port to Port Door to Door
Express(DHL,UPS,FEDEX, EMS)   1 - 5 days
Air Freight 1 - 5 days 4 - 10 days
Sea Freight(FCL) 15 - 30 days 20 - 35 days
Sea Freight(LCL) 15 - 30 days 22 - 37 days





FAQ



​​1. Where is your factory located? How can I visit there?

We are in Taizhou city, Zhejiang province China. By train, we are one hour away from Hangzhou and two hours away from Shanghai.

2. Can I get free samples and how long can you deliver them?
We are pleased to provide you with free samples for your evaluation, which will be sent to you within 2 days. Please feel free to reach out to us for samples.

3. How long does a quotation take?
In most cases, we respond within 2 days. If something in RFQ need be confirmed, we will promptly notify you soon.

4. How quickly can I get my order finished?
The production lead time is dependent on the quantity. Typically, it takes 5 to 15 working days for us to complete mass production once you have placed the order.

5. What about your quality control?
By visual inspection, optical or pressure sensitive equipment and automated 3D image-inspection equipment, our production operators conduct self-inspections at every stage of the process. Additionally, we have spot inspections and final inspections carried out by our Quality Control (QC) team.

6. What's your largest advantage?
One of our core competencies is our excellent converting capabilities from yarn over weaving to converted items with professional technical team and quality guarantee and management for more than 30 years.

7. What kind of payment terms do you accept?
T/T and LC and more.
