Nylon Filter Mesh Welded Tube Ring For Smoke Detector Filter Insect Repellent

Product Description

Nylon Filter Mesh Welded Tube Ring for Smoke Detector Filter Insect Repellent

The smoke detectot insect repellent filters are designed designed to deter insects and prevent them from biting or approaching in to the smoke detector. It normally made with nylon mesh or polyester mesh. Share Filter can supply filter mesh in rolls, cut pieces, welded tubes and final injection moulded filter for fire alarm filter insect.

Converting To Be Mesh Strips, Pieces, Rings, Tubes, Moulded Filter

Share's stock of nylon filter mesh is available in a variety of specifications that take into consideration the mesh opening (µ), open area, mesh count (threads per inch) and thread diameter. Other specifications such as weight (kg/m²), thickness (µ), and air permeability are available upon request. Share Filters not only offers a wide range of specifications of nylon filter mesh in rolls, we also process the filter mesh into all kinds of filter components.

Thanks to the advanced process equipments and many years of experience, Share Filters' filter mesh pieces and tubes can be tailored to any shape or dimension. Laser cutting allows for elaborate shapes to be cut that are specific to the customer’s design needs. Share Filters has the competence to manufacture tubes and rings either by heat slitting or by ultrasonic welding. For even better filter performance a combination of support and filter fabrics are possible. By slitting two layers of mesh simultaneously, the heat emitting from the slitting facility will weld both sides together creating a tube. These are suitable for mesh insert injection moulding and simple and cheap in production. For higher weld strength, we recommend ultrasonic welded tubes having one overlapping weld.

Share Filters' Filter Mesh Options for Smoke Detector Insect Repellent Filter

Product Details



Share Filters can supply mesh filter parts in different stages, from the mesh in rolls to final moulded filters.

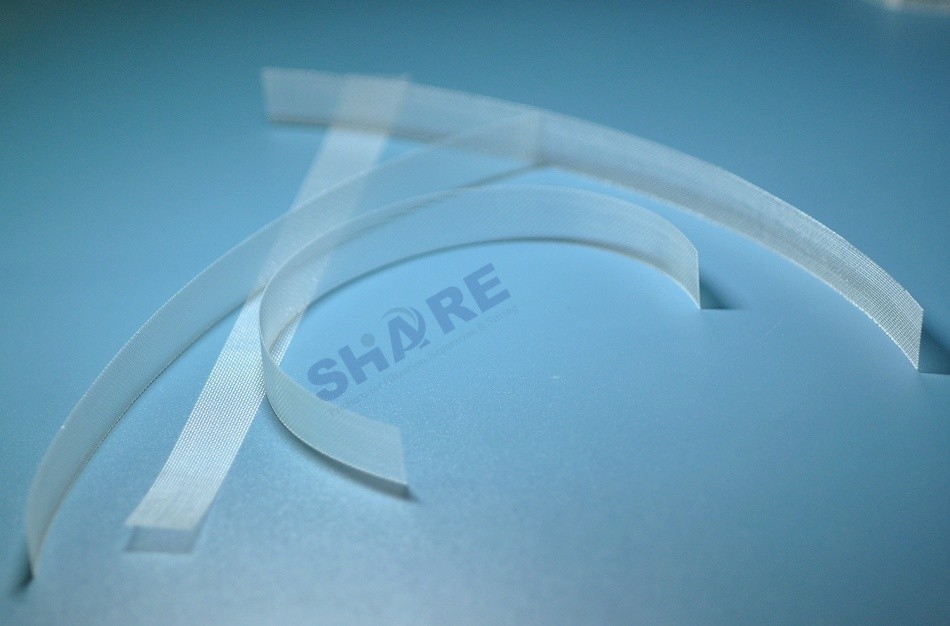

	Welded ring, tubes, convenient for injection moulding
	Precut filter mesh strip
	Slitted filter mesh ribbon
	Injection moulded filter





Benefits from Precut Nylon Mesh Tubes: Specific to the customer’s design needs Wide range of micron rating and thread diameter options Non-fraying and clean edges(depends on the technology) Convenient for insert moulding High productivity

The Property of Nylon Filter Mesh: High tensile strength and cost-effective Precise and even mesh opening Elasticity and flexibility Good resistance to alkline High operating temperature up to 115°C Easy cutting, dyeing, and cleaning





Nylon Filter Mesh Specifications for Smoke Detector Filter



Fabric number	Mesh count		Thread diameter	Mesh opening	Open area	Fabric thickness	Weight
No.	mesh/cm	mesh/inch	micron	micron	%	micron	g/m2
JPP4	4	10	550	1950	61	950	262
JPP5	5	12	500	1500	56	850	271
JPP6	6	16	400	1267	58	780	208
JPP7	7	18	350	1079	57	675	186
JPP8	8	20	350	900	52	685	212
JPP9	9	24	250	860	60	455	145
JPP10	10	25	300	700	49	576	195
JPP12	12	30	250	583	49	470	162
JPP12	12	30	300	533	41	585	234
JPP14	14	35	300	414	34	595	273
JPP16	16	40	200	425	46	370	139

This just a part of specifications which common used.

Mesh count (n/cm), (n/in) The mesh count stands for the number of openings per inch.   Mesh opening (w), (μm) The mesh opening w is the distance between two adjacent warp or weft thread.   Thread diameter (d),( μm) The thread diameter is measured on the thread before weaving.   Open area (%) The percentage of the open are is the sum of all mesh openings as percentage of the total fabric area





Share Filters Other Fabricated Filter Mesh Parts



Slitted mesh ribbon	Mesh Disc	Mesh Shape	Mesh tube	Welded bag





Fabricated Filter Mesh Edge Qualities



The edge quality differs significantly depending on processing technology



Processing Technologies	Ultrasonic slitting & welding	Heat slitting & cutting	Laser cutting	Cold cutting & punching
Fabrication Method	Mesh materials are slitted while crushing the edge with ultrasonic vibration	Mesh materials are slitted by heat treatment (temperature close to melting point)	Almost all shapes and sizes can be processed with laser cutter	Mesh are cut by cold slitting or punching
Edge Quality
Advantage	Very clean cut edges , small material build-up tight tolerances possible	Closed edge due to melting , possible for most mesh fabrics	Heat-sealed, non-fraying edges. High flexibility	Non-sealed edge. The most economical process, possible for all fabrics.





Why Work With Share Filters ?


Share Filters specializes in helping our customers design and manufacture high quality mesh filter components to around the world. As a supplier combining the filter mesh manufacturing and filter mesh processing according to custom-made design, we are flexible enough to adapt to our customers’ production and delivery needs. Our advanced manufacturing processes and scientific machines allow us to create filtration products in any shape or structure – from simple components like mesh pieces to complex devices like custom combination plastic moulded filters. Filter mesh shapes, bags, Injection-moulded filters and similar products of various shapes, sizes and filter meshes are our primary business.



We're the suppliers who have experience with synthetic filter meshes and are able to use them with plastic moulding in good conditions. The molding technique requires special tools and above all a great deal of know-how. We make serial injection moulding tools, assembly preparations and procedures ourselves. Filters and parts are produced, assembled, quality controlled and packed.



Precise Filter Mesh Weaving   The width of filter mesh rolls can be in 100cm, 127cm, 150cm, 165cm, 175cm, 183cm, 365cm or other custom width. Length of roll can be 30m, 50m, 70m, or other custom length.





Filter Mesh Slitted in Narrow Ribbons   Share Filters ribbons are used in a multitude of applications such as automotive filters, appliances filters, industrial filters, electronic devices, healthcare. Ribbons are often the basis for various further processing steps in numerous manufacturing processes for piece, tubes and bags. Advanced heat and ultrasonic slitting and cutting equipment enables the production of various kind of mesh ribbons with clean edges.





Filter Mesh Pre-Cut Pieces and Shapes   Share Filters cutting method include Laser cutting, Cold cutting, Heat cutting, Punching. Professional cutting using custom-made tools that will not damage the meshes. Laser cutting allows for elaborate shapes to be cut that are specific to the customer’s design needs.





Cutting and Welding Tubes   Share Filters has the competence to manufacture tubes either by heat slitting or by ultrasonic welding. The tubes are equipped with one or two functional seams according to the requirement, which provide the necessary seam strength. The ultrasonic welded tubes have one overlapping weld with more strength.





Ultrasonic Welded Mesh Bag	Sewn Mesh Bag





Standard Filter Bags   Share Filters produces and provides high quality liquid filter bags to fit standard size filter housing, as well as custom designed bags where requested. The constituent materials have been chosen for their purity, with consistent high quality and repeatable performance. Top design: plastic collar, metallic ring





Mesh Insert Injection Moulded Plastic Filters   Our injection moulded filters products consist of a filter mesh held in a plastic frame. Injection moulding will drop hot plastic in a custom made mould with a synthetic or metallic mesh inside. Once cooled and solid, it can produce a very robust and reliable part or product that can be used for filters or screens.





Application of Share Filters Products



Our customer base comes from a wide variety of industries including – Automotive, Home appliances, Food and beverage, Milling, Medical, Life Science and laboratory, Electronical as well as more general engineering, giving us a wealth of experience in many areas.



Fuel filter	Biopsy bag	Air purifier filter	Coffee filter	Irrigation filter	Mesh disc filter
Automotive	Laboratory	Appliance	Food & Beverage	Agriculture	Power tool





Contact Us



Share Filters provides some information for filter mesh possible applications, but there are too many functions for comprehensive descriptions of possible uses. Therefore, when considering a potential application in your particular industry, please consider contacting us who will work with engineers and product designers in choosing the right material and process for your specific projects.

Please connect with us today so we can learn more about your application and design specifications!
