Customized Plastic Moulded Filter with Mesh Screen Used for Water Fuel Hydraulic Oil Chemical Liquid Air Filtration

Product Description

Customized Plastic Moulded Filter with Mesh Screen

The quality of the air, fluids, or gases passing through is essential for various applications, from automobiles and water treatment to medical equipment and chemical processing. Filtration devices with integrated mesh inserts are an effective way to keep out unwanted pollutants and contaminants. Take filtration to new performance levels with mesh insert production from component plastics. We're a trusted manufacture of precision injection-molded plastic parts with mesh filters for critical practices.

Advantages of Share's Moulded Filters

Various of of filter medias for selection Wide range of micron rating avaiable Factory manufacture make cost effective Precise and even mesh result high filtration efficiency Wide experience in mesh insert injection moulding Smooth surface make the filters easy installation OEM/ODM acceptable

Specification

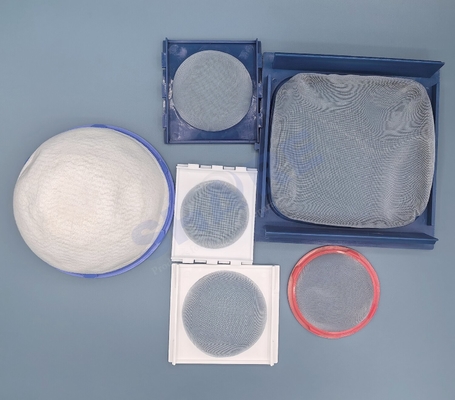

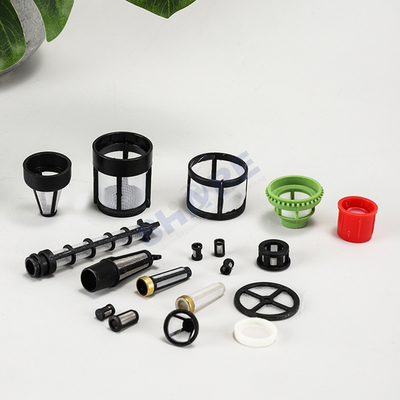

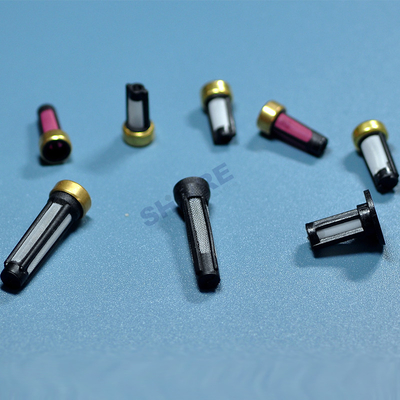

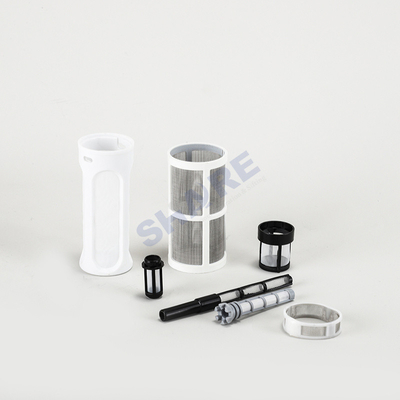

Product Pictures

If the filters you need are not included in our range, contact us for more information.

Share Filters not only manufactures the finished molded filters, but also supplies the various size of pre-cutted mesh pieces and welded mesh tubes which can directly usage or for insert injectin.

Nylon Filter Mesh Datasheet

This just a part of specifications which commonly used.

Mesh count (n/cm), (n/in) The mesh count stands for the number of openings per inch.   Mesh opening (μm) The mesh opening w is the distance between two adjacent warp or weft thread.   Thread diameter (μm) The thread diameter is measured on the thread before weaving.   Open area (%) The percentage of the open are is the sum of all mesh openings as percentage of the total fabric area

Share Filters can take action at any stage of the custom filter element design process, either :

• In consulting: which is the right filter media for a tube, a bag, a cartridge, a strainer?
• In study: how to implement the filter fabric in a simple and economical way. Is it necessary to stitch, weld or inject, which plastic is best used for the support rim?
• Prototyping and tool making
• In production:  samples test then mass production.

Share Filters, An OEM Mesh Insert Moulded Filters Manufacture From China

As a filter meshes and moulded filters manufacture, Share Filters always find the best solution to work with our OEM customers to collaborate on their filtration product development projects. Our experienced engineers are able to not only to meet your functional requirements, but also to recommend design alterations to improve performance and manufacturability. We will concentrate on the following:

Consider Area		Factors	Outcoming
Filtration Media		Select right material, weave type, pore size, thread diam, heat treatment, coatings	Media selected meets the required performance
Component Design		Consider supporting media, housing, end caps	The filtration components can perform well in working condition
Manufacturing Process		Design lends itself to easy manufacture and economic cost?	Produced at low cost of manufacture and high efficiency
Quality Control		Determine parameters and frequency of measurement	High quality, precision filter components

Example of Application

Automotive	Laboratory	Healthcare	Appliance	Beverage	Agriculture

What Share Filters Do?

Share Filters specializes in helping our customers design and manufacture high quality mesh filter components to around the world.

Filter mesh in rolls, shapes, tubes, bags, Injection-moulded filters and similar products of various shapes, sizes are our primary business.

As a supplier combining the filter mesh manufacturing and filter mesh processing according to custom-made design, we are flexible enough to adapt to our customers’ production and delivery needs. Our advanced manufacturing processes and scientific machines allow us to create filtration products in any shape or structure, from simple components like mesh pieces to complex devices like custom combination moulded filters.

We're the supplier who have experience with synthetic filter meshes and are able to use them with plastic injection moulding in good conditions. The moulding technique requires special tools and above all a great deal of know-how. We make serial injection moulding tools, assembly preparations and procedures ourselves. Filters and parts are produced, assembled, quality controlled and packed.

Photos of Factory


Warping	Weaving	Inspection
Whashing	Heat setting	Ultrasonic welding, cutting

Factory Capabilities

Share Filters sepcialize in manufacturing and offering filter mesh in different materials including nylon mesh, polyester mesh, pp mesh, metallic mesh, and we can also convert these filter meshes to mesh ribbons, mesh shapes , discs, mesh tubes, filter bags and mesh insert plastic molded filters to meet customs' filtration demands.

Share Filter synthetic meshes can be made from a variety of materials such as polyamide, polyester, polypropylene, etc. You can order by the roll or cut shape.		Slitting is also used for manufacturing mesh strips and produces a closed edge with very little material build up at the edge.		Our cutting method include Laser cutting, Cold cutting, Heatt cutting, punching. Professional cutting using custom made tools that will not damage the materials.
Sonic cutting and welding are accurate, clean. Precision sleeves and bags for blood filtration, rosin bag for rosin press are examples of applications that benefit from this technology.		Share Filters sewing products are carried out by highly skilled and experienced machinists, which ensure you get the right level of consistent quality.		Custom plastic moulded filter combine precise filter mesh with polymer plastic. Industry serve: Automotive, Appliances, Food and beverage, Medical, Life Science and Laboratory.
